picoCTF 2024 - Reverse Engineering
Reverse Engineering Challenges
Solved: 5/7 challenges
- packer - 100 points
- FactCheck - 200 points
- WinAntiDbg0x100 - 200 points
- weirdSnake - 300 points
- WinAntiDbg0x200 - 300 points
FactCheck
Tags: `Reverse Engineering` `browser_webshell_solvable`
Description

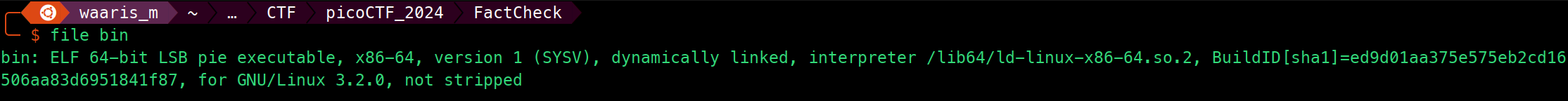

This binary is putting together some important piece of information... Can you uncover that information? Examine this file. Do you understand its inner workings?Reverse this linux executable?

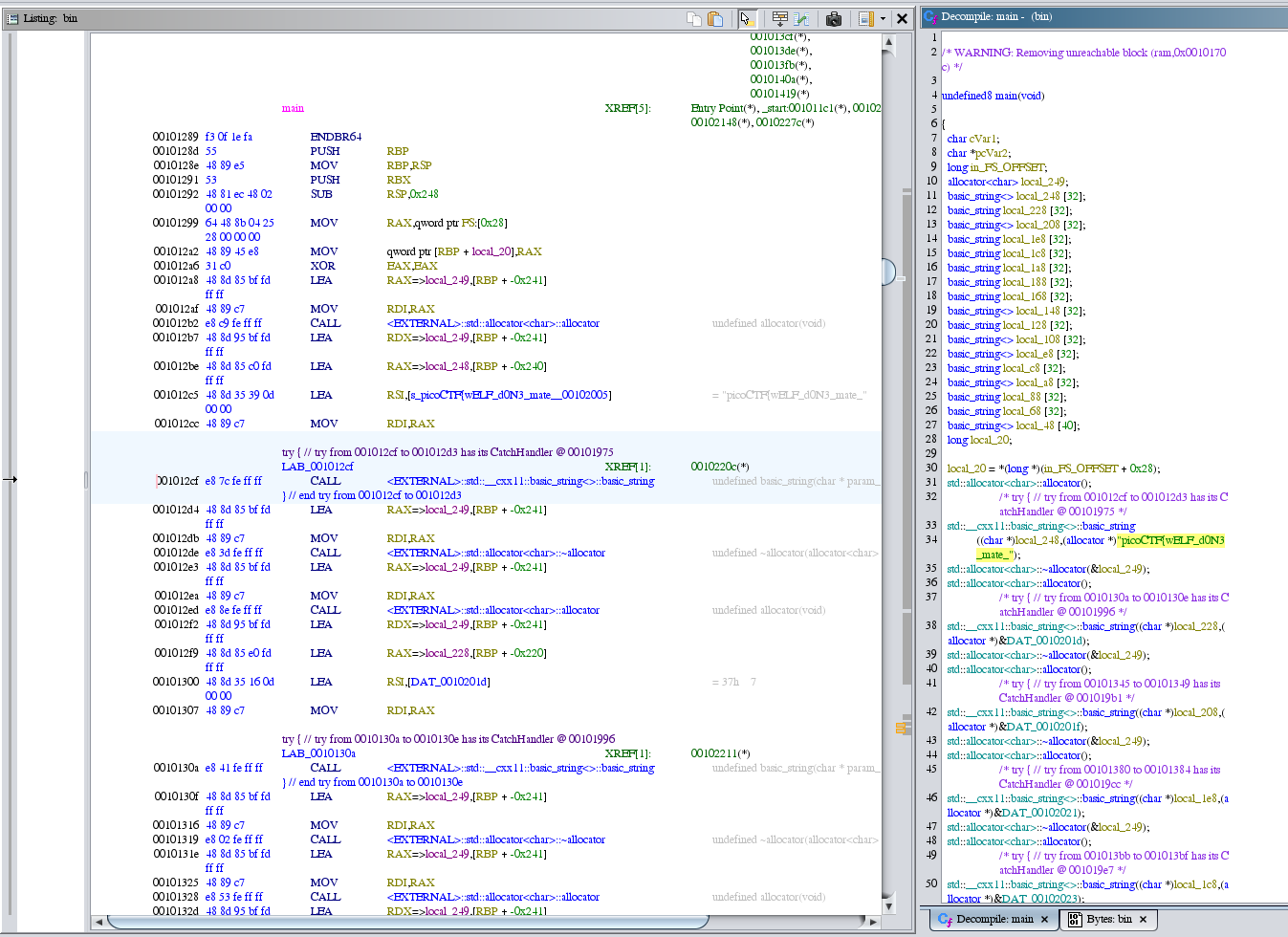

Open it with Ghidra.
After analyzing it, I found several key conditions.
- The condition
if v24[0] <= 65:checks if the ASCII value of the first character inv24(which is "5") is less than or equal to 65. This condition evaluates to False because the ASCII value of "5" is 53, which is not less than or equal to 65. - The condition
if v35[0] != 65:checks if the ASCII value of the first character inv35(which is "6") is not equal to 65. This condition evaluates to True because the ASCII value of "6" is 54, which is not equal to 65. - The condition
if "Hello" == "World":checks if the string "Hello" is equal to the string "World". This condition evaluates to False since the two strings are not the same. - The condition
if v19 - v30[0] == 3:calculates the difference betweenv19(the ASCII value of the first character inv26, which is "3") and the ASCII value of the first character inv30(which is "e"), and checks if this difference equals 3. This condition evaluates based on the ASCII values of "3" (51) and "e" (101), which does not result in 3, so it evaluates to False. - The condition
if v29[0] == 71:checks if the ASCII value of the first character inv29(which is "a") is equal to 71. This condition evaluates to False because the ASCII value of "a" is 97, not 71.
Solution Strategy
def main():
v3 = None
v4 = None
v5 = None
v6 = None
v7 = None
v8 = None
v9 = None
v10 = None
v11 = None
v12 = None
v13 = None
v14 = None
v15 = None
v16 = None
v17 = None
v18 = None
v19 = None
v21 = bytearray()
v22 = bytearray("picoCTF{wELF_d0N3_mate_", 'utf-8')
v23 = bytearray("7", 'utf-8')
v24 = bytearray("5", 'utf-8')
v25 = bytearray("4", 'utf-8')
v26 = bytearray("3", 'utf-8')
v27 = bytearray("6", 'utf-8')
v28 = bytearray("9", 'utf-8')
v29 = bytearray("a", 'utf-8')
v30 = bytearray("e", 'utf-8')
v31 = bytearray("3", 'utf-8')
v32 = bytearray("d", 'utf-8')
v33 = bytearray("b", 'utf-8')
v34 = bytearray("1", 'utf-8')
v35 = bytearray("6", 'utf-8')
v36 = bytearray("e", 'utf-8')
v37 = bytearray("c", 'utf-8')
v38 = bytearray("8", 'utf-8')
v39 = None
# Simulating readfsqword(0x28u)
v39 = 0
if v24[0] <= 65:
v22.extend(v34)
if v35[0] != 65:
v22.extend(v37)
if "Hello" == "World":
v22.extend(v25)
v19 = v26[0]
if v19 - v30[0] == 3:
v22.extend(v26)
v22.extend(v25)
v22.extend(v28)
if v29[0] == 71:
v22.extend(v29)
v22.extend(v27)
v22.extend(v36)
v22.extend(v23)
v22.extend(v31)
v22.append(125)
print(v22)
if __name__ == "__main__":
main()

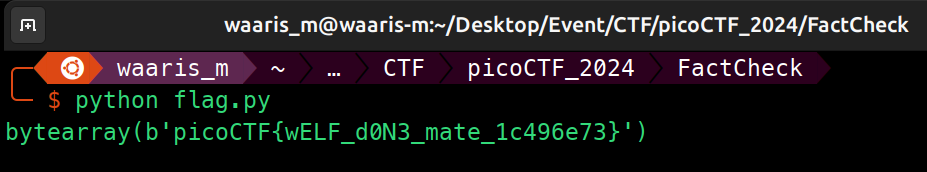

Flag
packer
Tags: `Reverse Engineering` `browser_webshell_solvable`
Description
Reverse this linux executable?

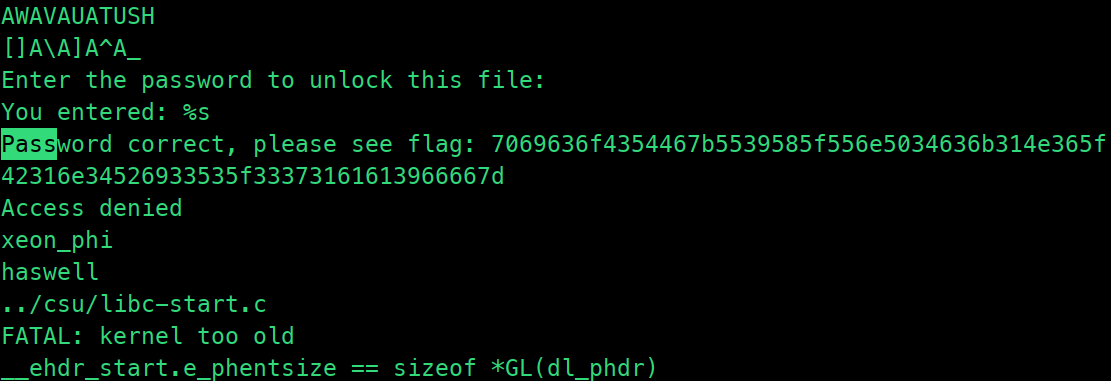

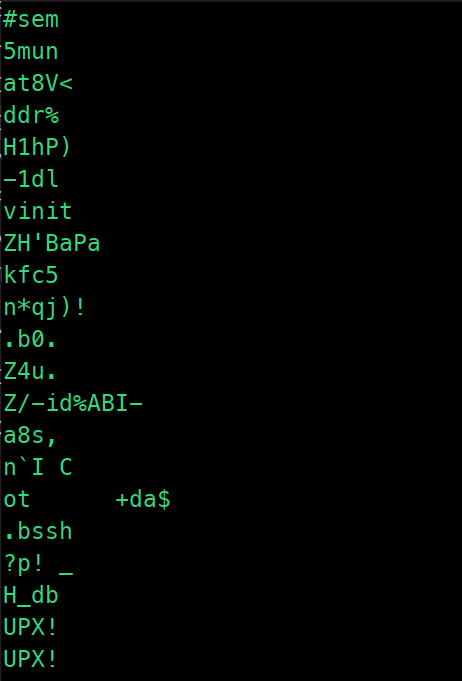

strings out

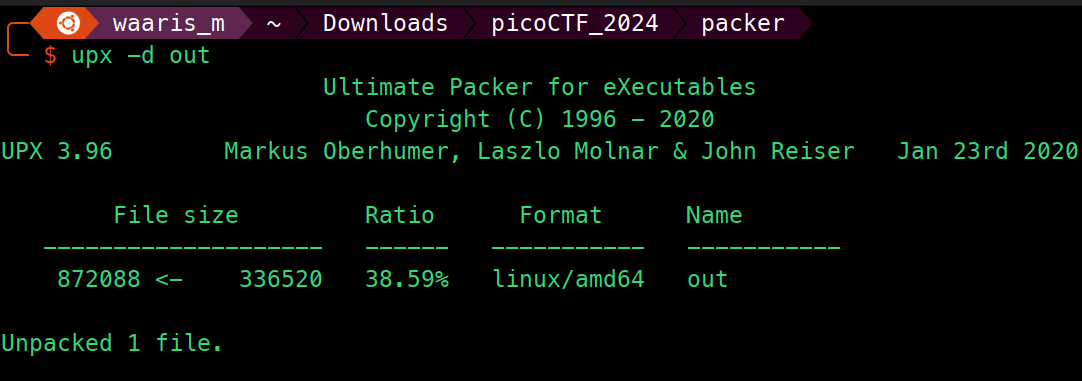

upx -d out
strings out
Solution Strategy

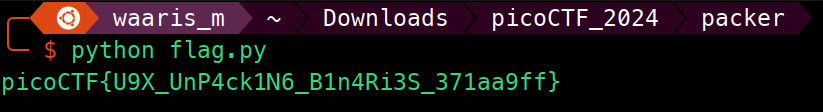

# Hexadecimal string from flag.txt
hex_string = "7069636f4354467b5539585f556e5034636b314e365f42316e34526933535f33373161613966667d"
# Convert the hexadecimal string to ASCII
ascii_string = bytes.fromhex(hex_string).decode()
print(ascii_string)
Flag
weirdSnake
Tags: `Reverse Engineering` `browser_webshell_solvable` `python`
Description
I have a friend that enjoys coding and he hasn't stopped talking about a snake recently He left this file on my computer and dares me to uncover a secret phrase from it. Can you assist?
1 0 LOAD_CONST 0 (4)
2 LOAD_CONST 1 (54)
4 LOAD_CONST 2 (41)
6 LOAD_CONST 3 (0)
8 LOAD_CONST 4 (112)
10 LOAD_CONST 5 (32)
12 LOAD_CONST 6 (25)
14 LOAD_CONST 7 (49)
16 LOAD_CONST 8 (33)
18 LOAD_CONST 9 (3)
20 LOAD_CONST 3 (0)
22 LOAD_CONST 3 (0)
24 LOAD_CONST 10 (57)
26 LOAD_CONST 5 (32)
28 LOAD_CONST 11 (108)
30 LOAD_CONST 12 (23)
32 LOAD_CONST 13 (48)
34 LOAD_CONST 0 (4)
36 LOAD_CONST 14 (9)
38 LOAD_CONST 15 (70)
40 LOAD_CONST 16 (7)
42 LOAD_CONST 17 (110)
44 LOAD_CONST 18 (36)
46 LOAD_CONST 19 (8)
48 LOAD_CONST 11 (108)
50 LOAD_CONST 16 (7)
52 LOAD_CONST 7 (49)
54 LOAD_CONST 20 (10)
56 LOAD_CONST 0 (4)
58 LOAD_CONST 21 (86)
60 LOAD_CONST 22 (43)
62 LOAD_CONST 17 (110)
64 LOAD_CONST 22 (43)
66 LOAD_CONST 23 (88)
68 LOAD_CONST 3 (0)
70 LOAD_CONST 24 (67)
72 LOAD_CONST 25 (104)
74 LOAD_CONST 26 (125)
76 LOAD_CONST 14 (9)
78 LOAD_CONST 27 (78)
80 BUILD_LIST 40
82 STORE_NAME 0 (input_list)
2 84 LOAD_CONST 28 ('J')
86 STORE_NAME 1 (key_str)
3 88 LOAD_CONST 29 ('_')
90 LOAD_NAME 1 (key_str)
92 BINARY_ADD
94 STORE_NAME 1 (key_str)
4 96 LOAD_NAME 1 (key_str)
98 LOAD_CONST 30 ('o')
100 BINARY_ADD
102 STORE_NAME 1 (key_str)
5 104 LOAD_NAME 1 (key_str)
106 LOAD_CONST 31 ('3')
108 BINARY_ADD
110 STORE_NAME 1 (key_str)
6 112 LOAD_CONST 32 ('t')
114 LOAD_NAME 1 (key_str)
116 BINARY_ADD
118 STORE_NAME 1 (key_str)
9 120 LOAD_CONST 33 (<code object <listcomp> at 0x7ffb38066d40, file "snake.py", line 9>)
122 LOAD_CONST 34 ('<listcomp>')
124 MAKE_FUNCTION 0
126 LOAD_NAME 1 (key_str)
128 GET_ITER
130 CALL_FUNCTION 1
132 STORE_NAME 2 (key_list)
11 >> 134 LOAD_NAME 3 (len)
136 LOAD_NAME 2 (key_list)
138 CALL_FUNCTION 1
140 LOAD_NAME 3 (len)
142 LOAD_NAME 0 (input_list)
144 CALL_FUNCTION 1
146 COMPARE_OP 0 (<)
148 POP_JUMP_IF_FALSE 162
12 150 LOAD_NAME 2 (key_list)
152 LOAD_METHOD 4 (extend)
154 LOAD_NAME 2 (key_list)
156 CALL_METHOD 1
158 POP_TOP
160 JUMP_ABSOLUTE 134
15 >> 162 LOAD_CONST 35 (<code object <listcomp> at 0x7ffb38066df0, file "snake.py", line 15>)
164 LOAD_CONST 34 ('<listcomp>')
166 MAKE_FUNCTION 0
168 LOAD_NAME 5 (zip)
170 LOAD_NAME 0 (input_list)
172 LOAD_NAME 2 (key_list)
174 CALL_FUNCTION 2
176 GET_ITER
178 CALL_FUNCTION 1
180 STORE_NAME 6 (result)
18 182 LOAD_CONST 36 ('')
184 LOAD_METHOD 7 (join)
186 LOAD_NAME 8 (map)
188 LOAD_NAME 9 (chr)
190 LOAD_NAME 6 (result)
192 CALL_FUNCTION 2
194 CALL_METHOD 1
196 STORE_NAME 10 (result_text)
198 LOAD_CONST 37 (None)
200 RETURN_VALUE
Disassembly of <code object <listcomp> at 0x7ffb38066d40, file "snake.py", line 9>:
9 0 BUILD_LIST 0
2 LOAD_FAST 0 (.0)
>> 4 FOR_ITER 12 (to 18)
6 STORE_FAST 1 (char)
8 LOAD_GLOBAL 0 (ord)
10 LOAD_FAST 1 (char)
12 CALL_FUNCTION 1
14 LIST_APPEND 2
16 JUMP_ABSOLUTE 4
>> 18 RETURN_VALUE
Disassembly of <code object <listcomp> at 0x7ffb38066df0, file "snake.py", line 15>:
15 0 BUILD_LIST 0
2 LOAD_FAST 0 (.0)
>> 4 FOR_ITER 16 (to 22)
6 UNPACK_SEQUENCE 2
8 STORE_FAST 1 (a)
10 STORE_FAST 2 (b)
12 LOAD_FAST 1 (a)
14 LOAD_FAST 2 (b)
16 BINARY_XOR
18 LIST_APPEND 2
20 JUMP_ABSOLUTE 4
>> 22 RETURN_VALUE
Solution Strategy
input_list = [4, 54, 41, 0, 112, 32, 25, 49, 33, 3, 0, 0, 57, 32, 108, 23, 48, 4, 9, 70, 7, 110, 36, 8, 108, 7, 49, 10, 4, 86, 43, 110, 43, 88, 0, 67, 104, 125, 9, 78]
key_str = 't_Jo3'
key_list = [ord(char) for char in key_str]
while len(key_list) < len(input_list):
key_list.extend(key_list)
result = [a ^ b for a, b in zip(input_list, key_list)]
result_text = ''.join(map(chr, result))
print(result_text)
Flag
WinAntiDbg0x100
Tags: `Reverse Engineering` `windows`
Description

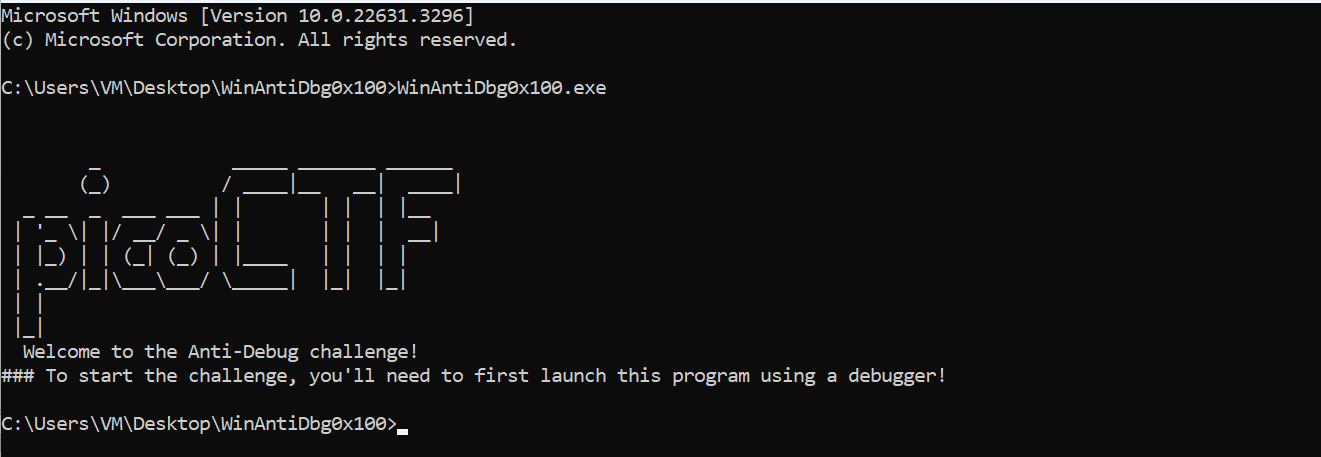

This challenge will introduce you to 'Anti-Debugging.' Malware developers don't like it when you attempt to debug their executable files because debugging these files reveals many of their secrets! That's why, they include a lot of code logic specifically designed to interfere with your debugging process. Now that you've understood the context, go ahead and debug this Windows executable! This challenge binary file is a Windows console application and you can start with running it using cmd on Windows. Challenge can be downloaded here.

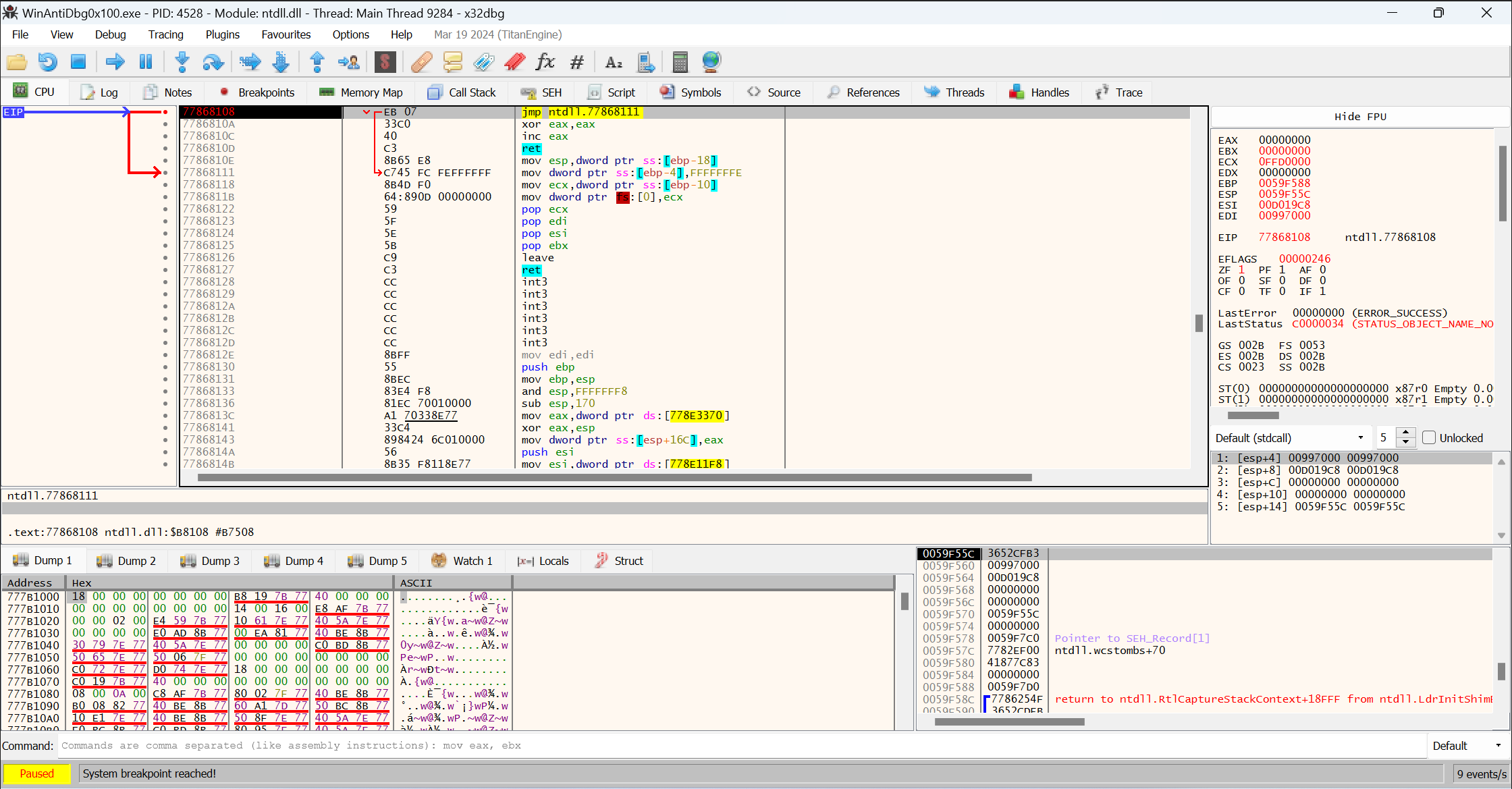

Open it with x32dbg.

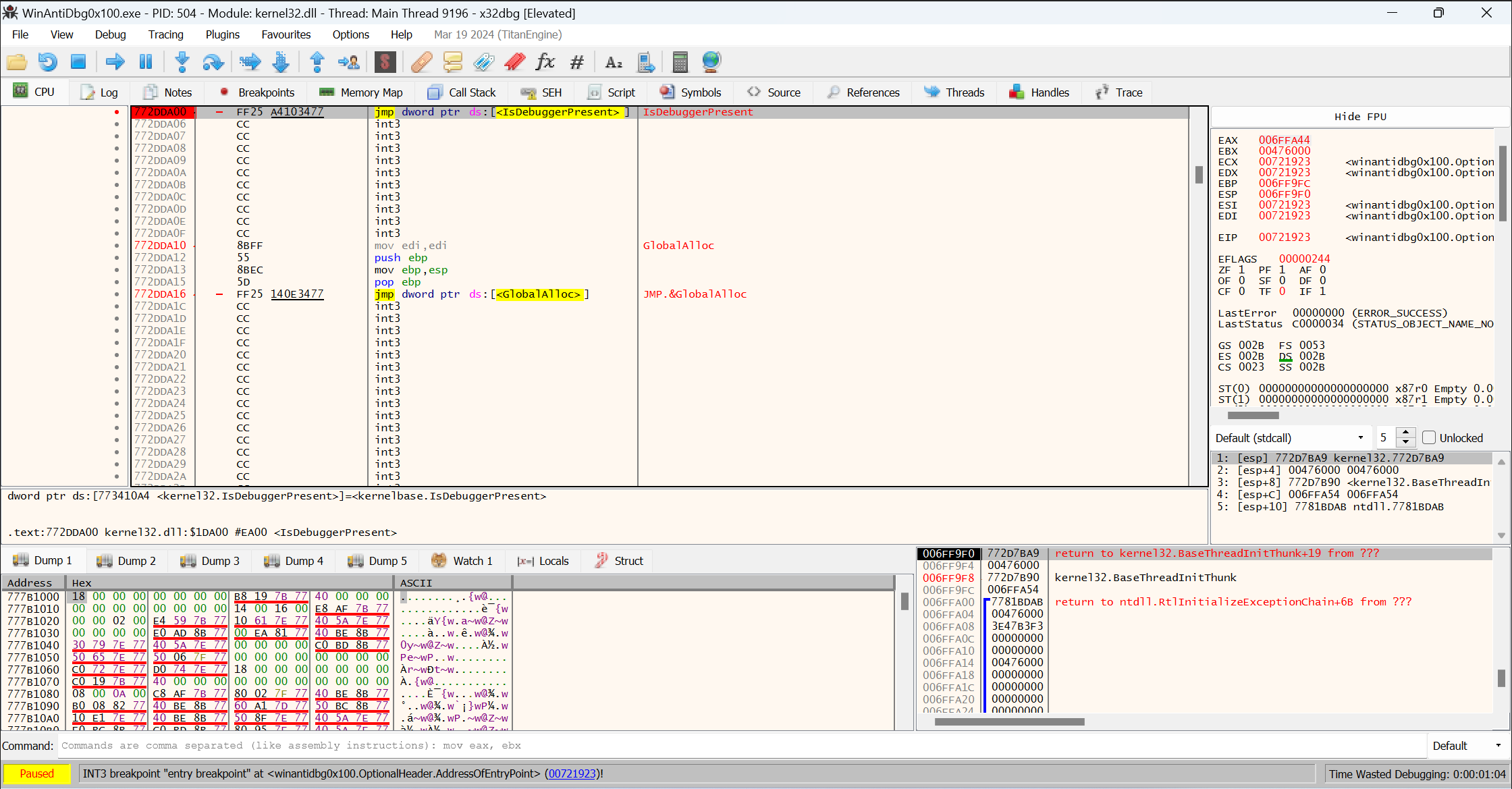

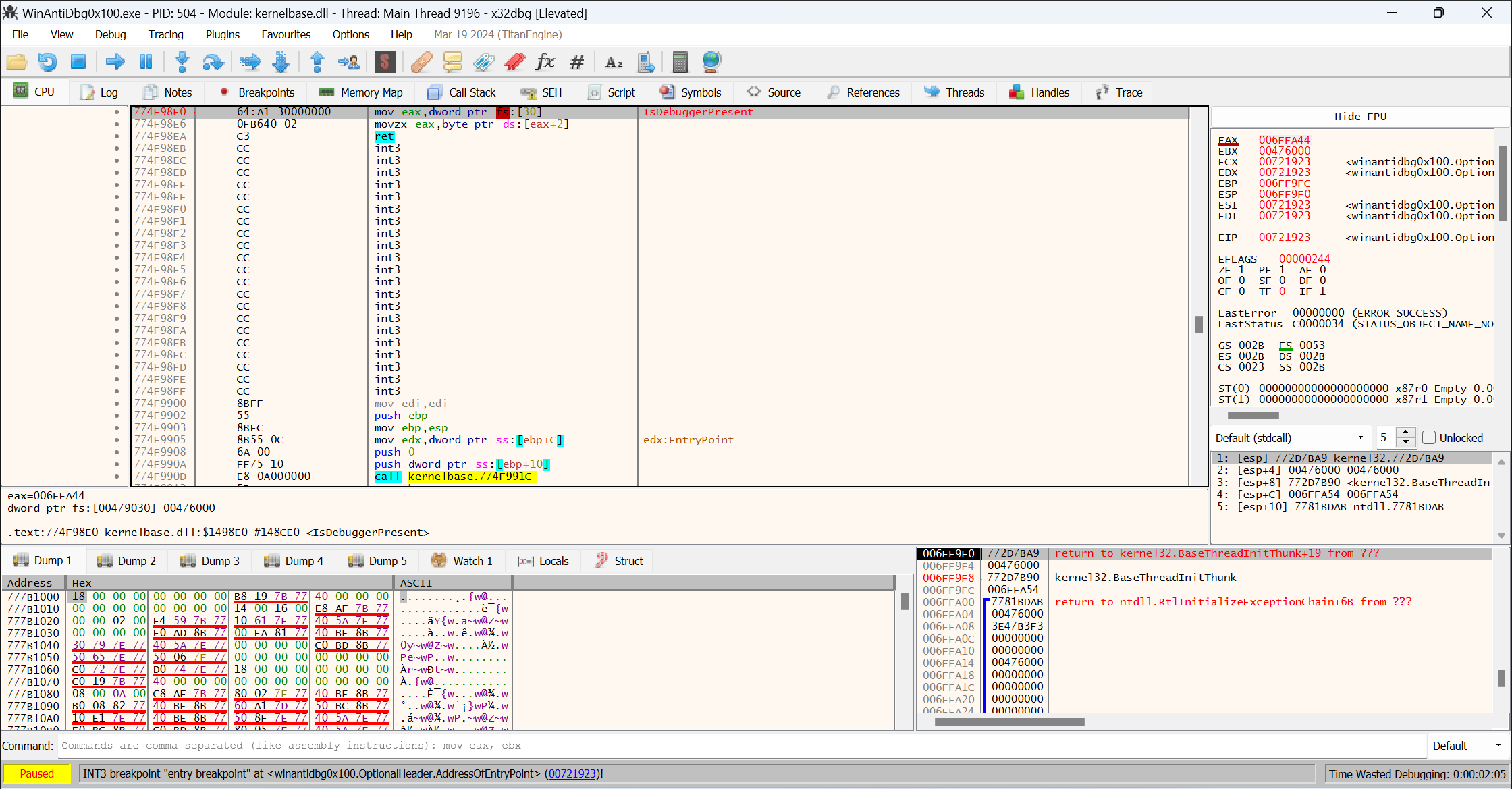

After analyzing it, I set breakpoints on IsDebuggerPresent.
bp IsDebuggerPresent

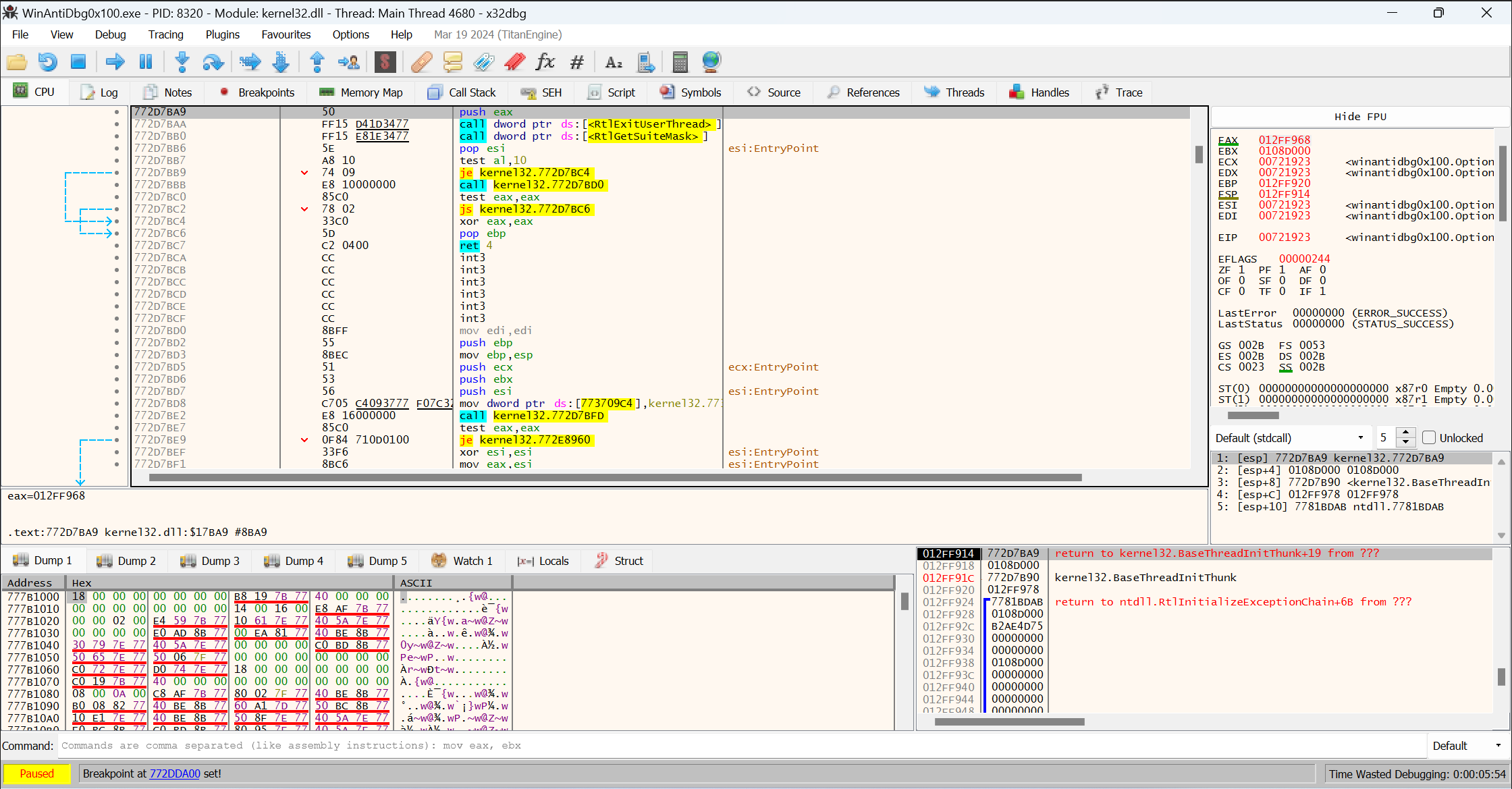

Double Click IsDebuggerPresent
Double Click ret

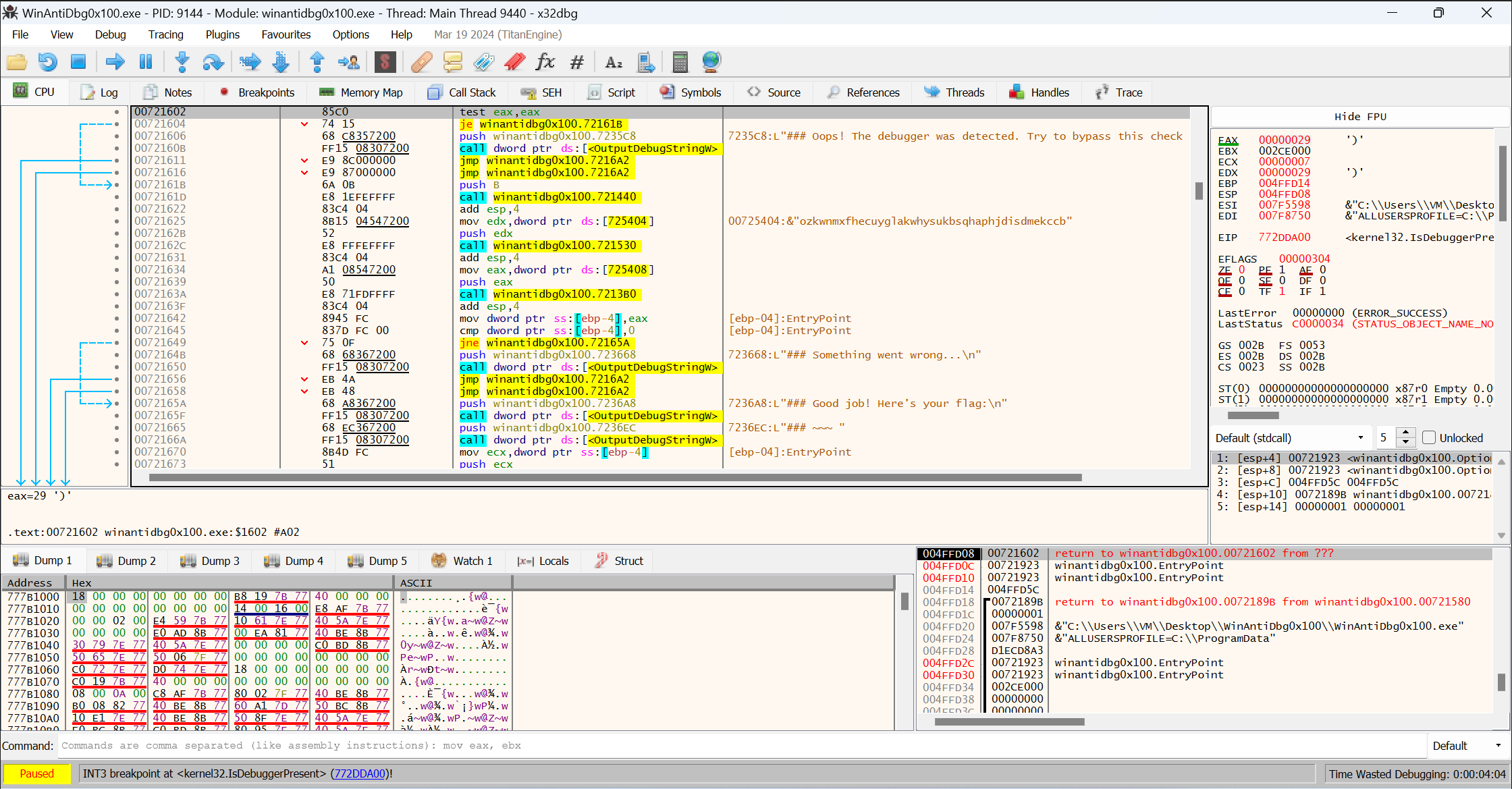

Click Step Over to follow the app's control flow, then stop at je winantidbgx100
Solution Strategy

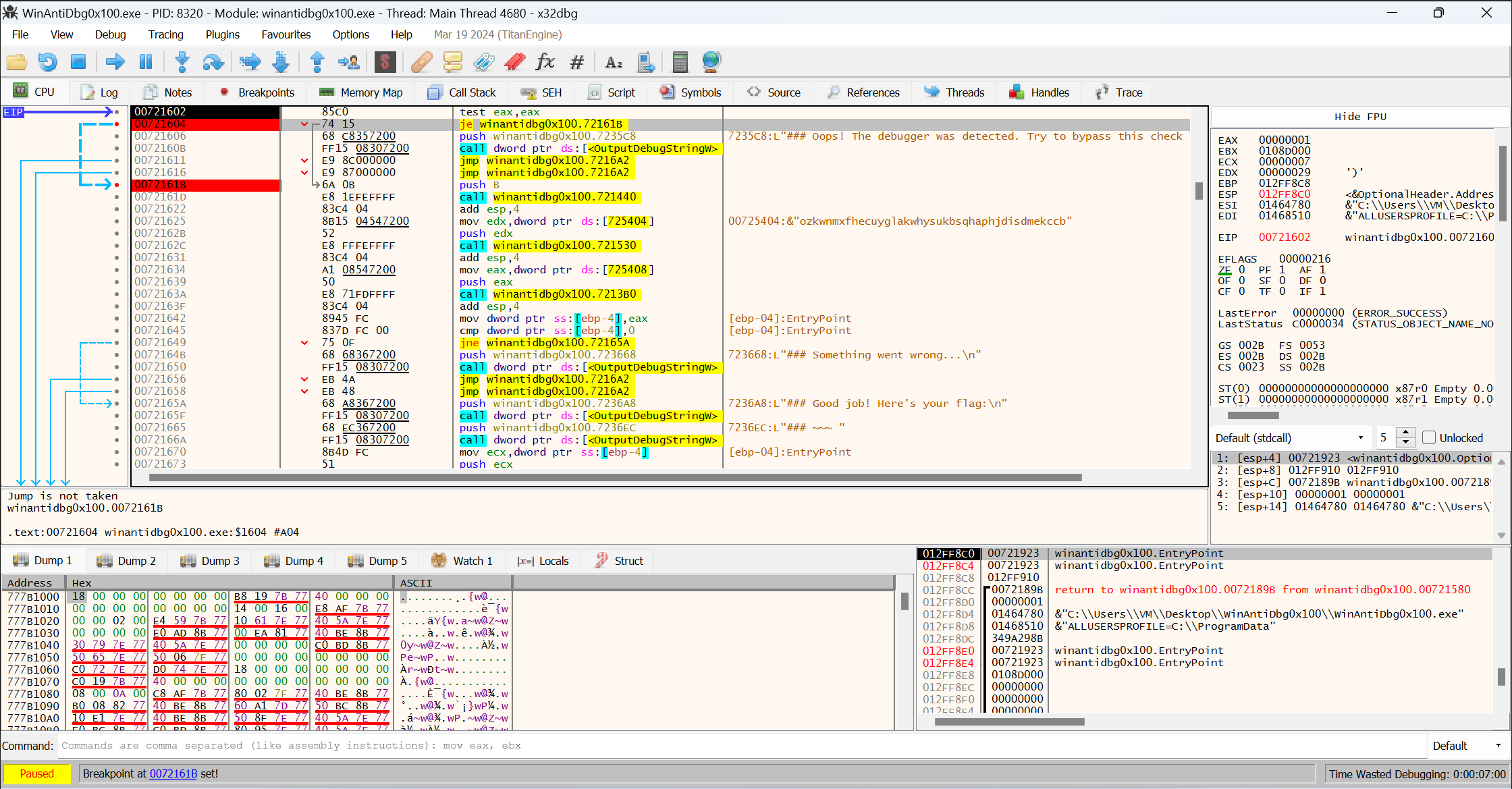

Set breakpoints at je winantidbgx100

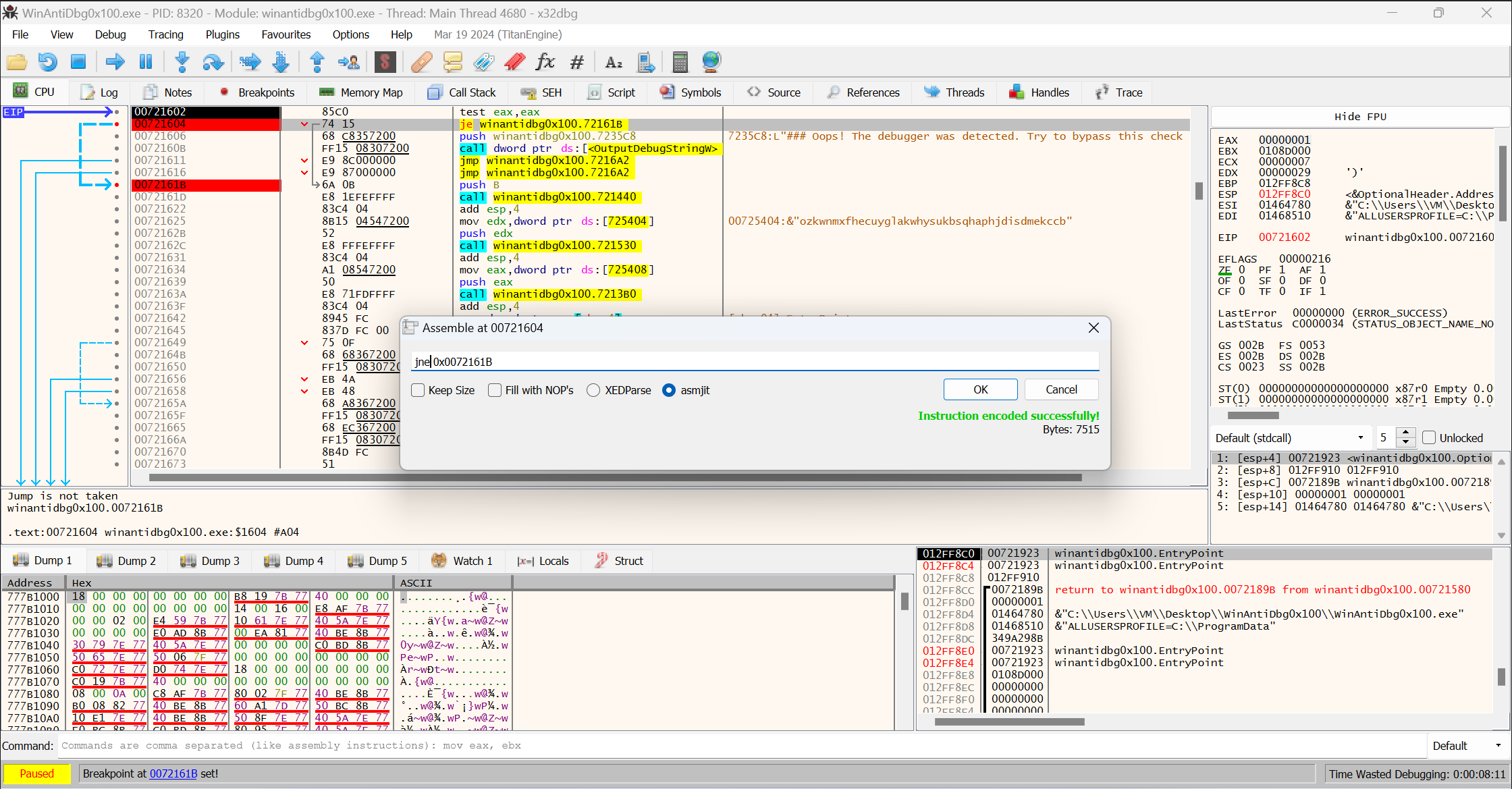

Change je winantidbgx100 --> jne winantidbgx100

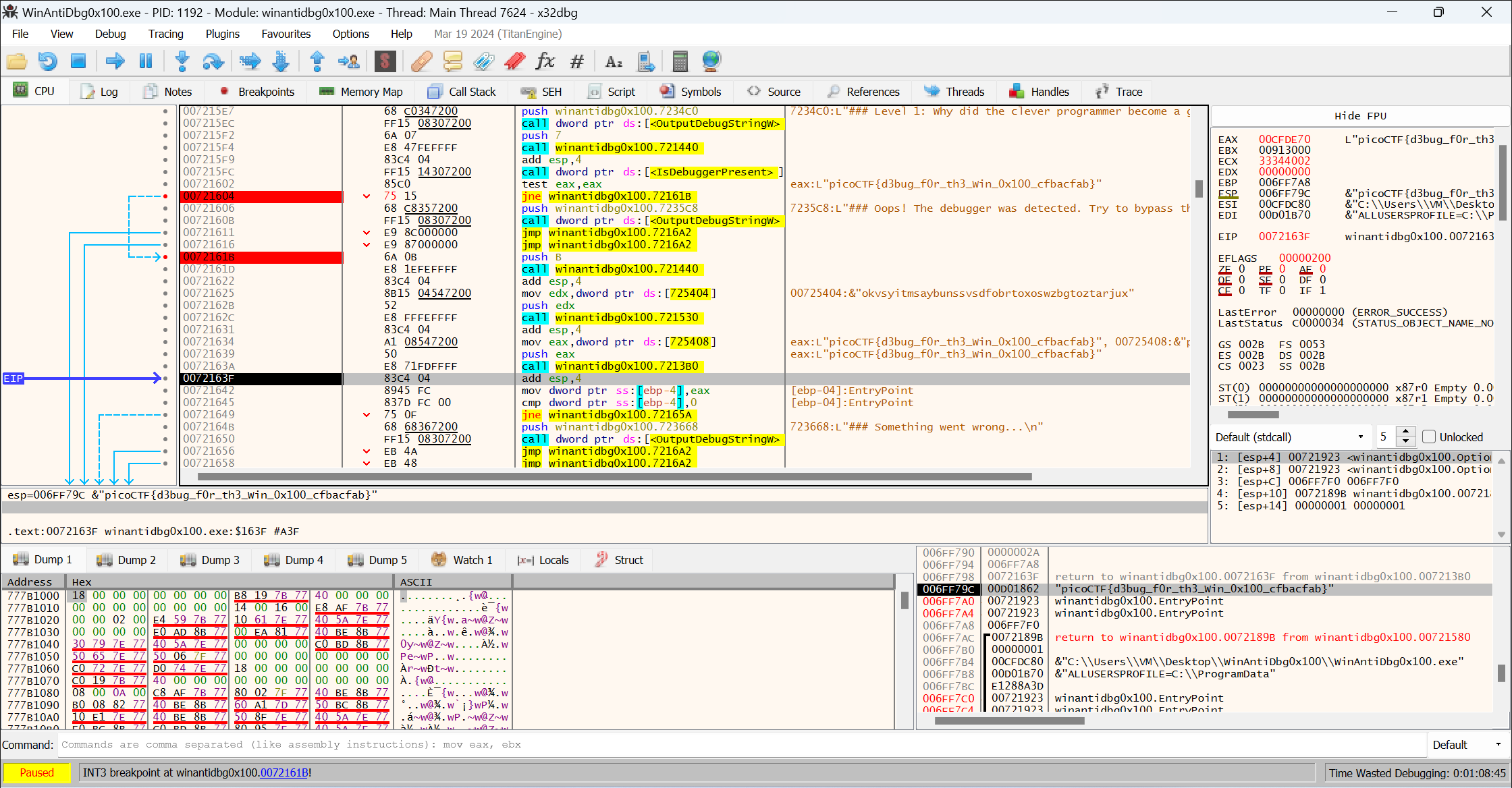

Click Step Over repeatedly to get the flag.
Flag
WinAntiDbg0x200
Tags: `Reverse Engineering` `windows`
Description

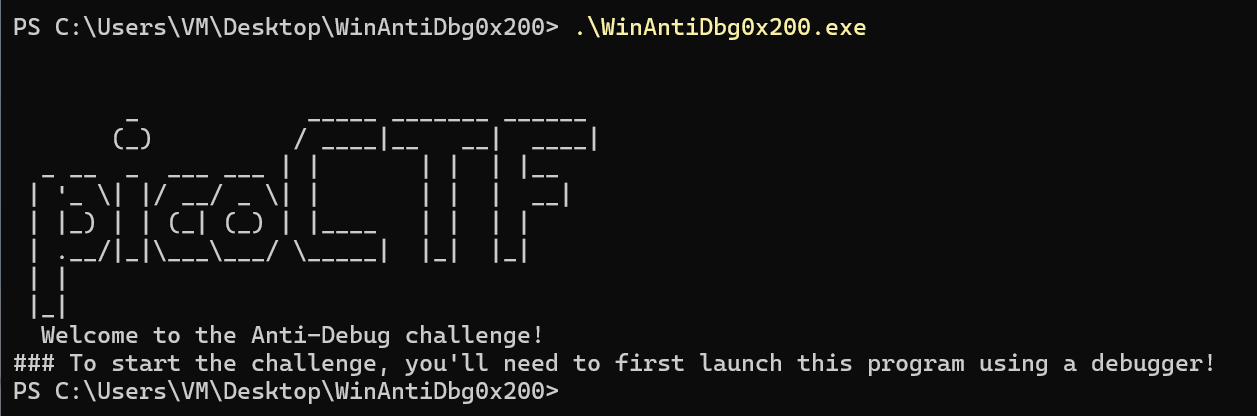

If you have solved WinAntiDbg0x100, you'll discover something new in this one. Debug the executable and find the flag! This challenge executable is a Windows console application, and you can start by running it using Command Prompt on Windows. This executable requires admin privileges. You might want to start Command Prompt or your debugger using the 'Run as administrator' option. Challenge can be downloaded here.

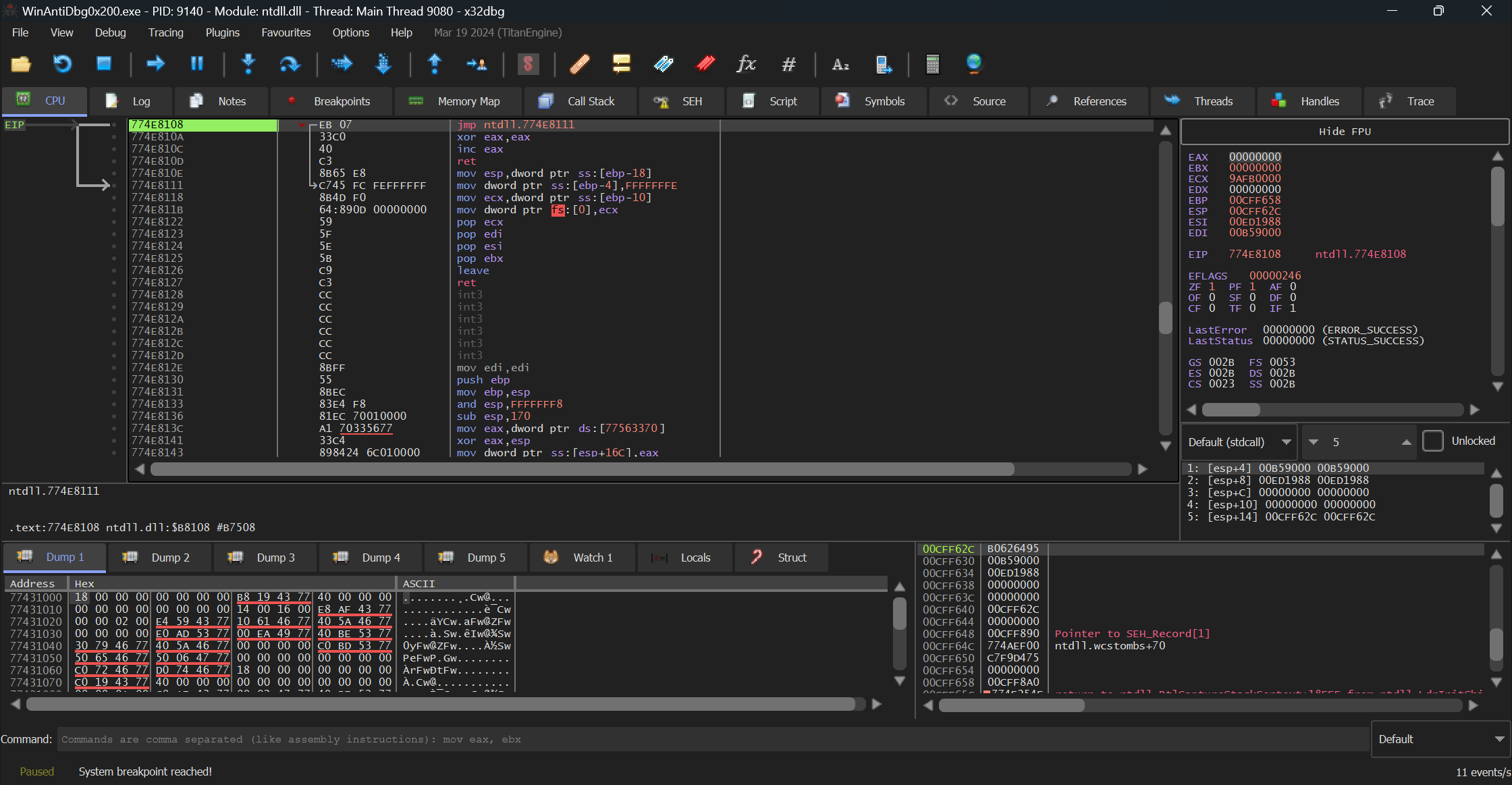

Open it with x32dbg.
After analyzing it, I set breakpoints on IsDebuggerPresent.

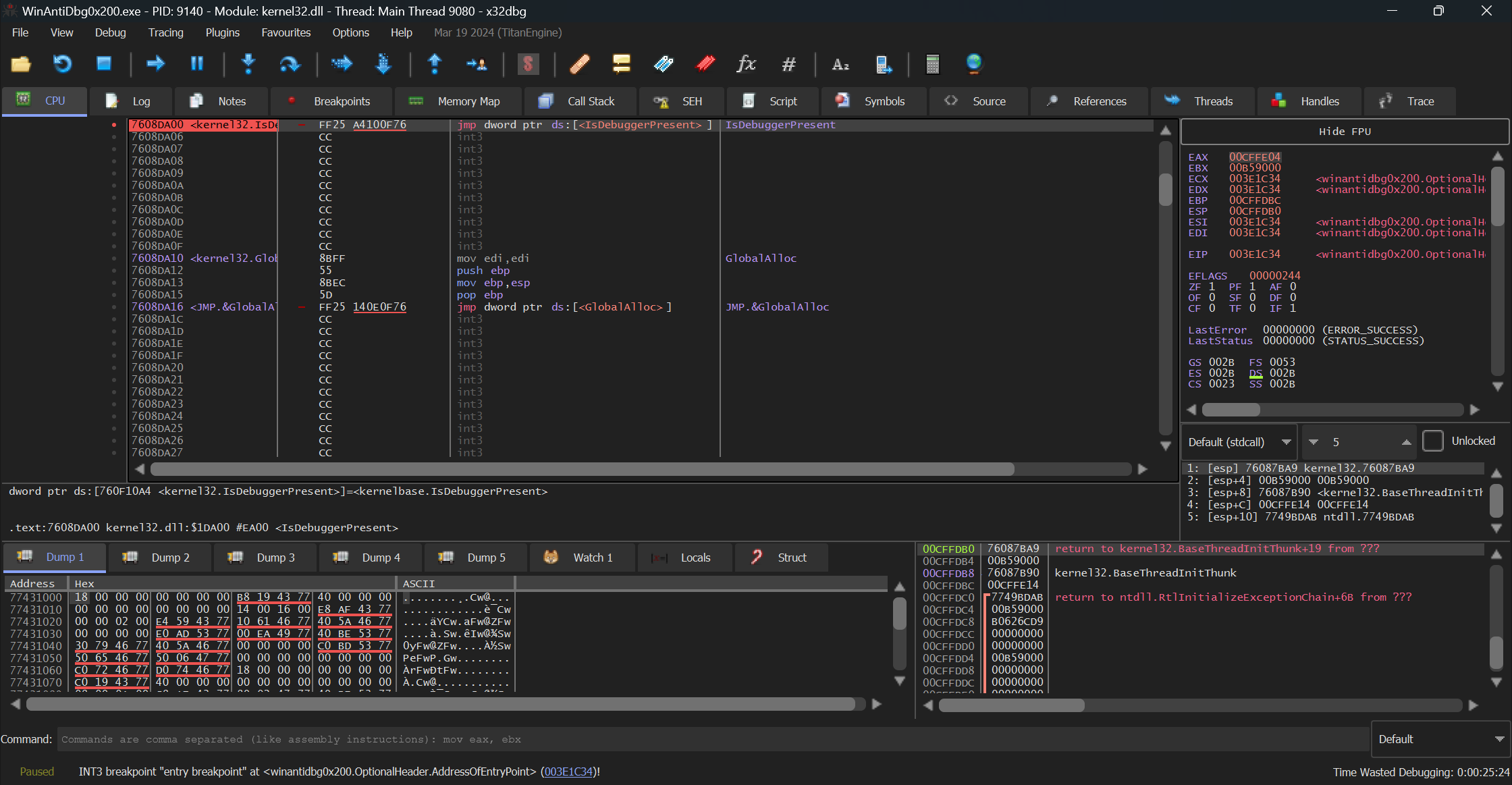

bp IsDebuggerPresent
Double Click IsDebuggerPresent
Solution Strategy

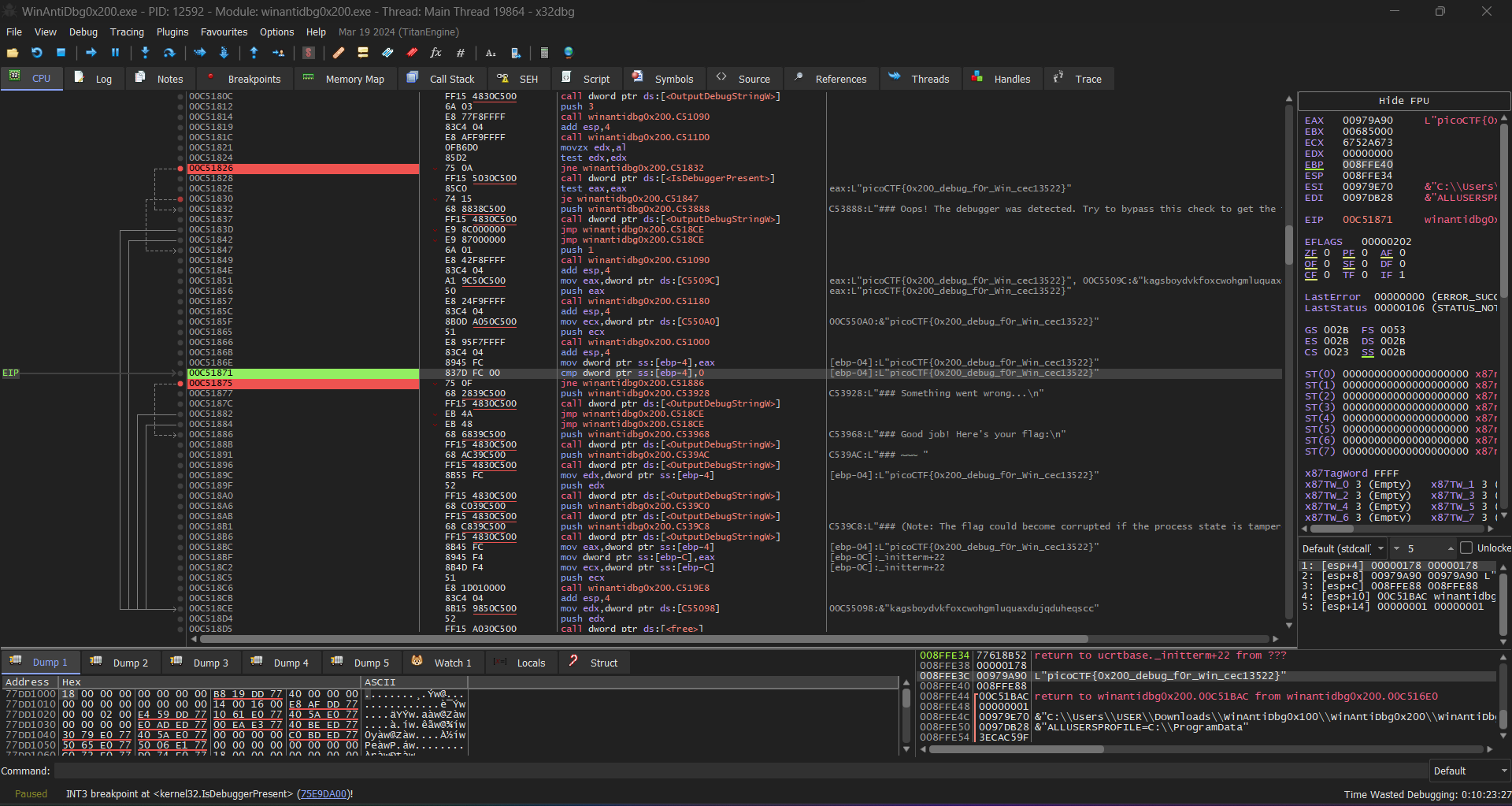

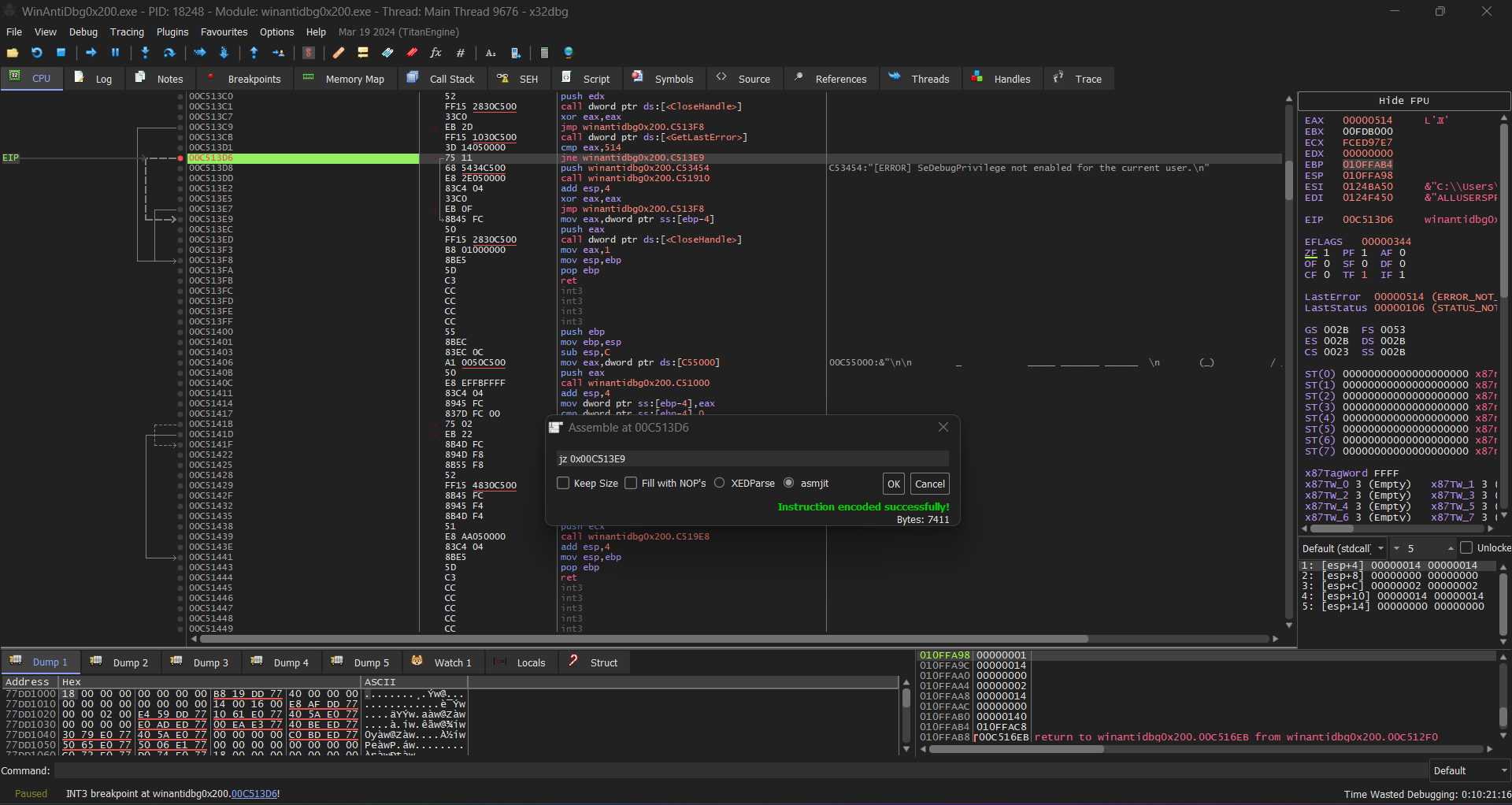

Click Step Over to follow the app's control flow, then stop at jne winantidbg0x200.C513E9

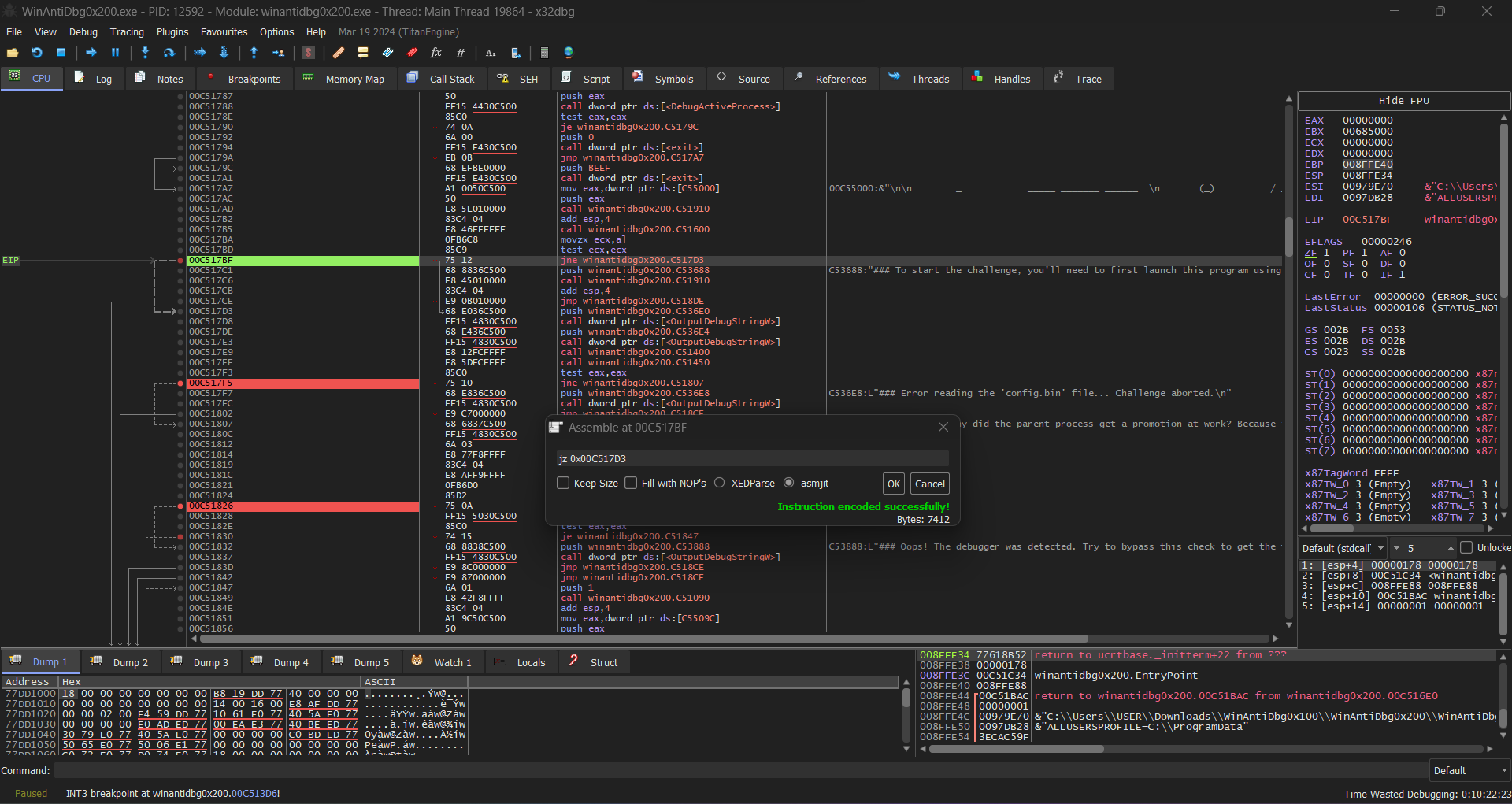

Click Step Over to follow the app's control flow, then stop at jz winantidbg0x200.C517D3

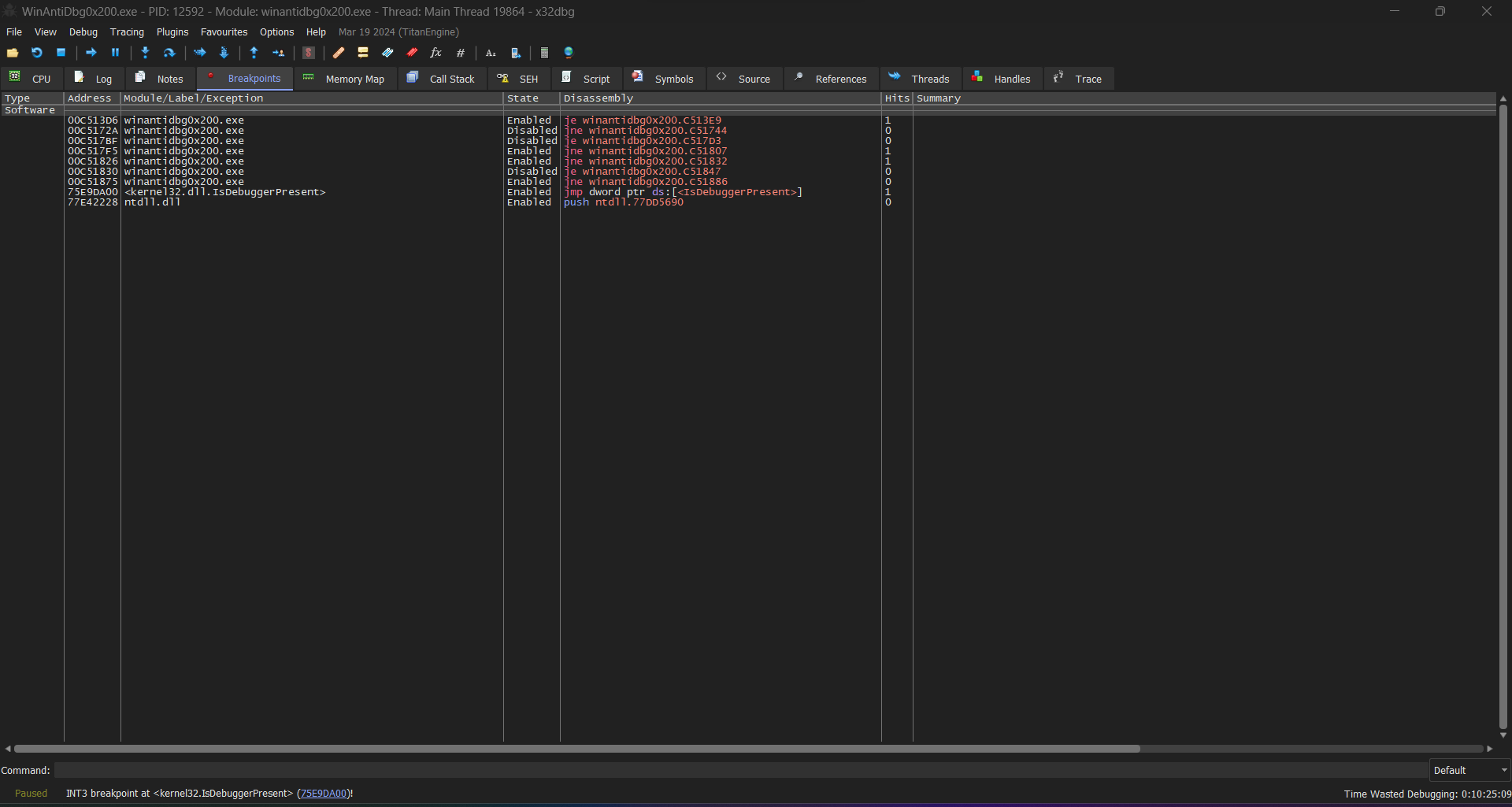

All Breakpoints
Flag
